RAM

4 GB RAM / 256 MB Flash

Data rate

Up to 3 Gbit/s

Data storage

240 GB to 1 TB

Recording Modes

Internal Storage, External Storage Unit,   PC via Ethernet

Time stamp

100 ns

External operating voltage

6 to 32V

Current consumption

Up to 7 A (standard operation) / max. 1   mA (standby)

Temperature range

-40 to +65 °C

Dimensions

68 x 264 x 205 mm

Weight

2,9 kg

Case

Anodized aluminum

Other

Hermetically Sealed Active Cooling,   Real-time Clock, Supercap Unit, Ethernet Relay, Transparency Mode

Storage formats

X2E Native, X2E ASCII, Carmen-Journal   (V3.0), Wireshark PCAP/PCAPNG, MOST OP2, MOST IMG, Vector BLF, Vector ASCII,   XAA for GNLog, DLT AUTOSAR, System Events, NMEA for GPS, Raw RS-232, CSV for   Analog/CCP, CSV for Signals, Video Extractor, MATLAB signals, MDF   Signals/Buslogging

Software protocols

CCP/XCP, PLP, XLP

Wake up

CAN, FlexRay, RS-232, LIN, PSI5, Wakeline   oder Trigger

Software

XORAYA Suite, XORAYA WebGUI and XORAYA   SDK for Windows & Linux, XORAYA App

Other

Automatic sleep mode

C20B18GE2­F2A6D4L24

20

6

12

2

2

6

4

-

24

C20B18GE2­A6R8L24

20

6

12

2

-

6

-

8

24

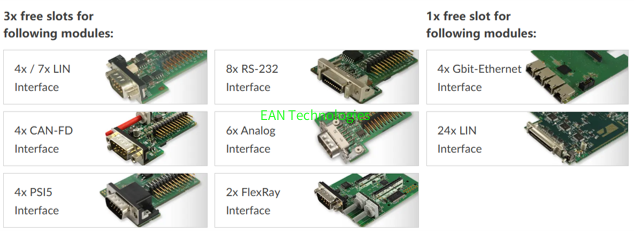

Available   Interfaces

HS-CAN, CAN-FD, RS-232, FlexRay, LIN,   Analog, 100/1000BASE-T1, 100BASE-T1, 1000BASE-TX, Digital-In
