RAM

4   GB RAM / 128MB QSPI Flash

Data   rate

Up   to 3 Gbit/s

Storage

Up   to 1 TB internal memory / up to 2 TB external memory(optional)

Recording   Modes

Internal   Storage, External Storage Unit, PC via Ethernet

Time   stamp

100   ns

External   operating voltage

6   to 32 V

Current   consumption

Max.   1 A (standard) / max. 1 mA (standby)

Temperature   range

-40   to +60 °C

Dimensions

65   x 165 x 165 mm

Weight

2,2   kg

Housing

Anodized   aluminum

Other

Hermetically   sealed active cooling, real-time clock, supercap unit

Storage   formats

X2E   Native, X2E ASCII, Carmen-Journal (V3.0), Wireshark PCAP/PCAPNG, MOST OP2,   MOST IMG, Vector BLF, Vector ASCII, XAA for GNLog, DLT AUTOSAR, System   Events, NMEA for GPS, Raw RS-232, CSV for Analog/CCP, CSV for Signals, Video   Extractor, MATLAB Signals, MDF Signals/Buslogging

Software   protocols

CCP/XCP,   PLP, XLP

Wake   up

CAN,   FlexRay, RS-232, LIN, PSI5, Wakeline oder Trigger

Software

XORAYA   Suite, XORAYA WebGUI and XORAYA SDK for Windows & Linux

Other

Automatic   sleep mode

R8C4GE4

4

6

-

-

-

4

R8C8GE4

8

6

-

-

-

4

L7C8

8

-

-

7

-

-

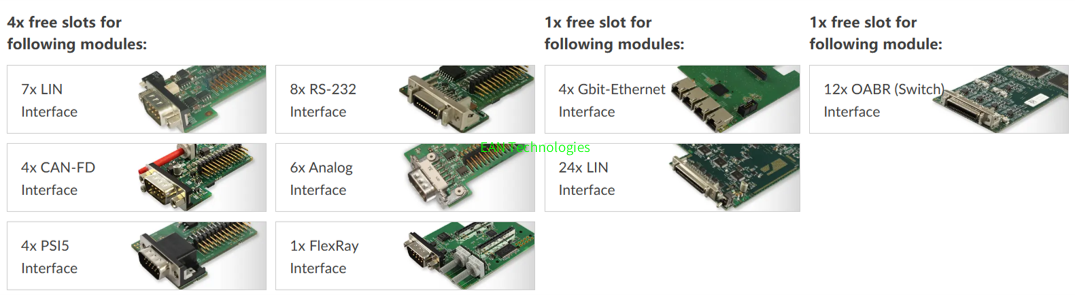

Available   Interfaces

HS-CAN,   CAN-FD, RS-232, FlexRay, LIN, 100/1000BASE-T1, Gbit Ethernet
