RAM

4   GB RAM / 128MB QSPI Flash

Data   rate

Up   to 2 Gbit/s

Data   storage

240   GB to 1 TB intern

Quick   Boot Buffer

1.5   GByte / 6 sec

Time   stamp

100   ns

External   operating voltage

6   to 36 V

Current   consumption

tbd

Temperature   range

-40   to +65 °C

Dimensions

100   x 50 x 200 mm

Weight

tbd

Other

Active   Cooling, Real-time Clock, Powercap Unit

Storage   formats

X2E   Native, X2E ASCII, Carmen-Journal (V3.0), Wireshark PCAP/PCAPNG, MOST OP2,   MOST IMG, Vector BLF, Vector ASCII, XAA for GNLog, DLT AUTOSAR, System   Events, NMEA for GPS, Raw RS-232, CSV for Analog/CCP, CSV for Signals, Video   Extractor, MATLAB Signals, MDF Signals/Buslogging

Software   protocols

CCP/XCP,   PLP, XLP

Recording   Mode

Internal   memory / PC via Ethernet

Wake   up

CAN,   RS-232, LIN, Wakeline or Trigger

Software

XORAYA   Suite, XORAYA WebGUI and XORAYA SDK for Windows & Linux

Other

Automatic   sleep mode

Available   Interfaces

HS-CAN,   CAN-FD, RS-232, FlexRay, LIN, 100/1000BASE-T1, Gbit Ethernet

Non-Logging   Interfaces

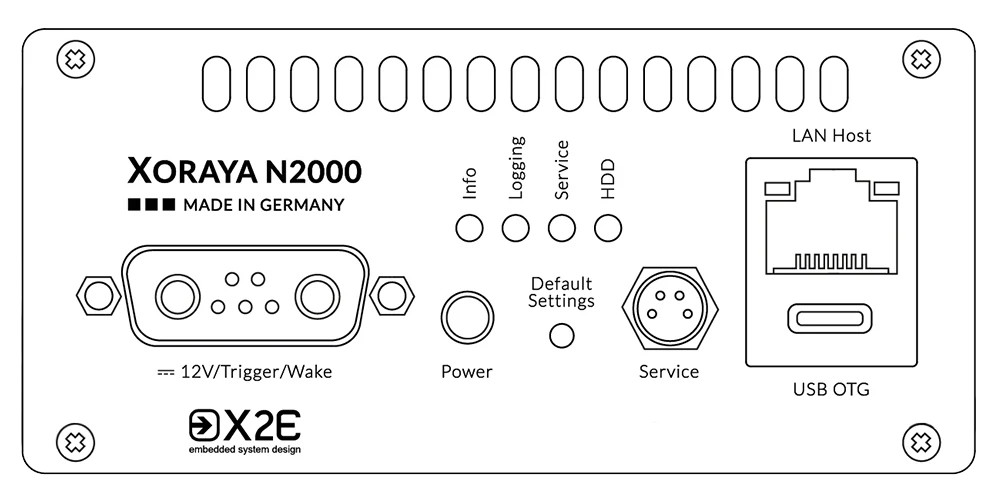

1x   12V/Trigger/Wake, 1x USB OTG, 1x LAN Host, 1x Service

C6B2GE2A6R4

6

4

4

6

2

2
